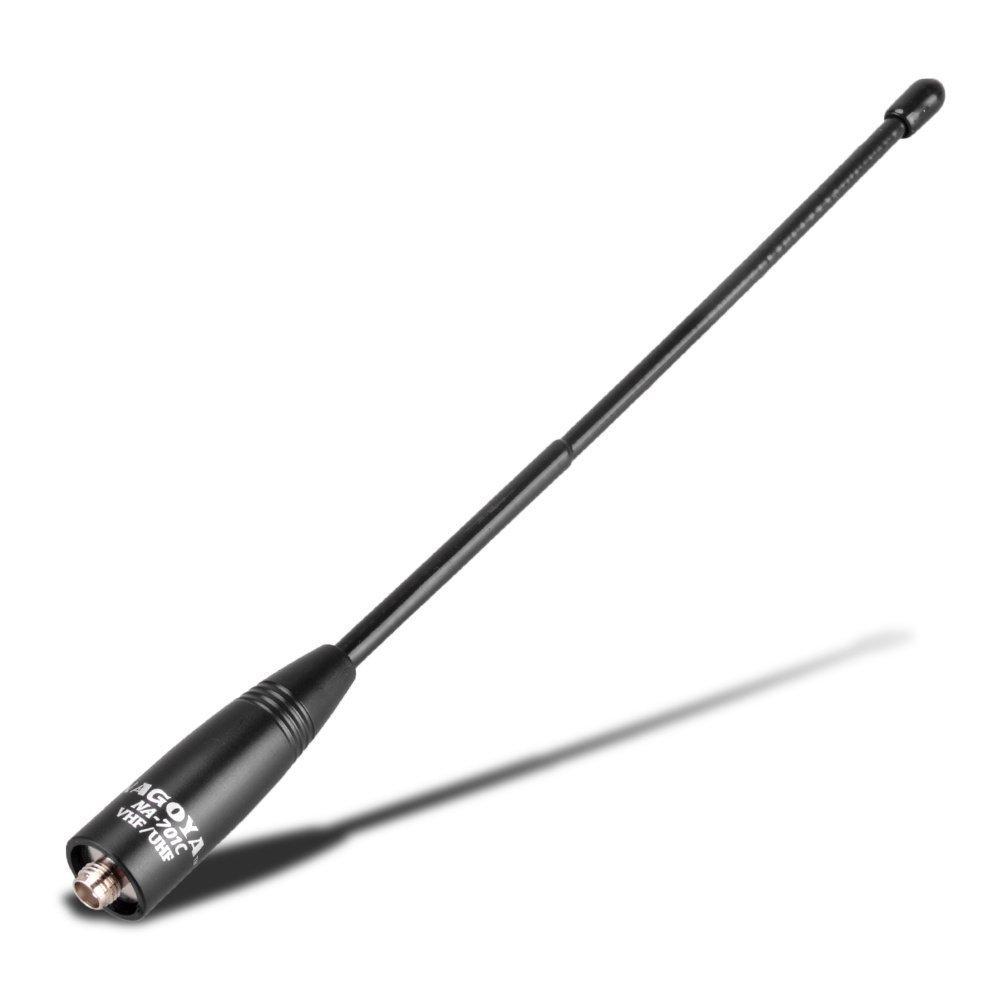

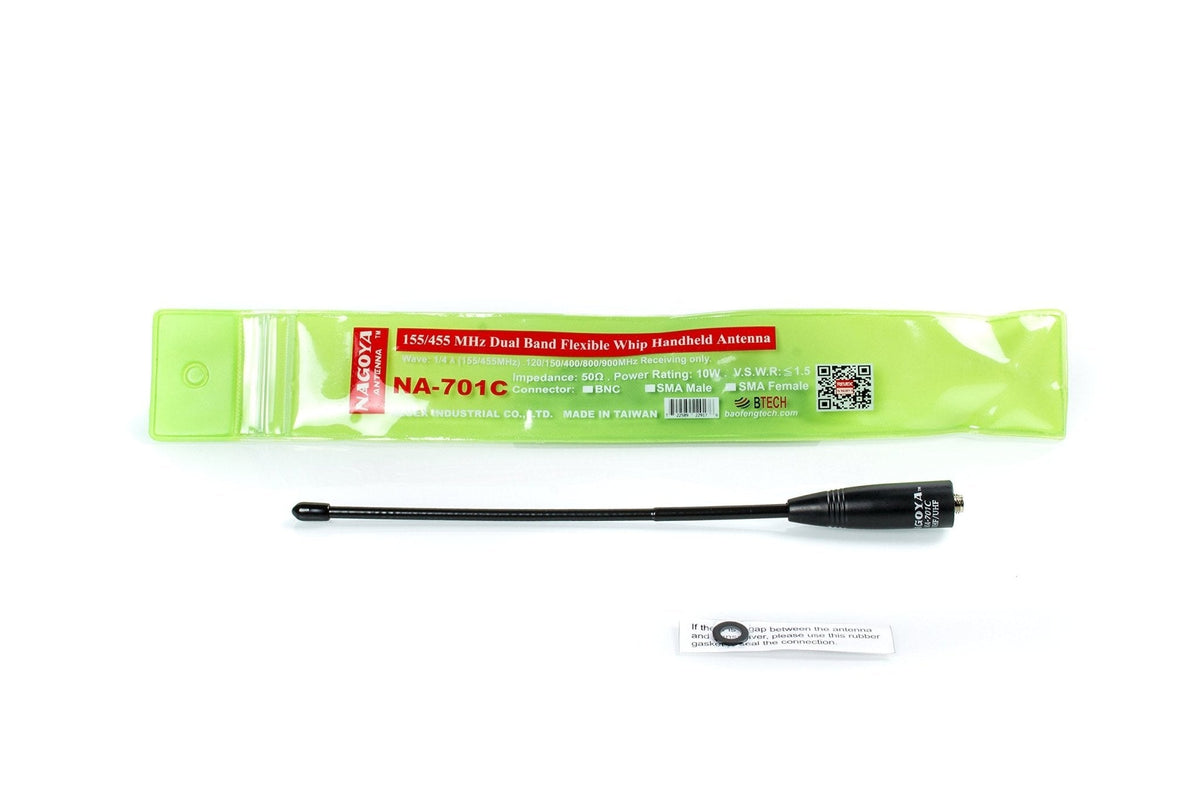

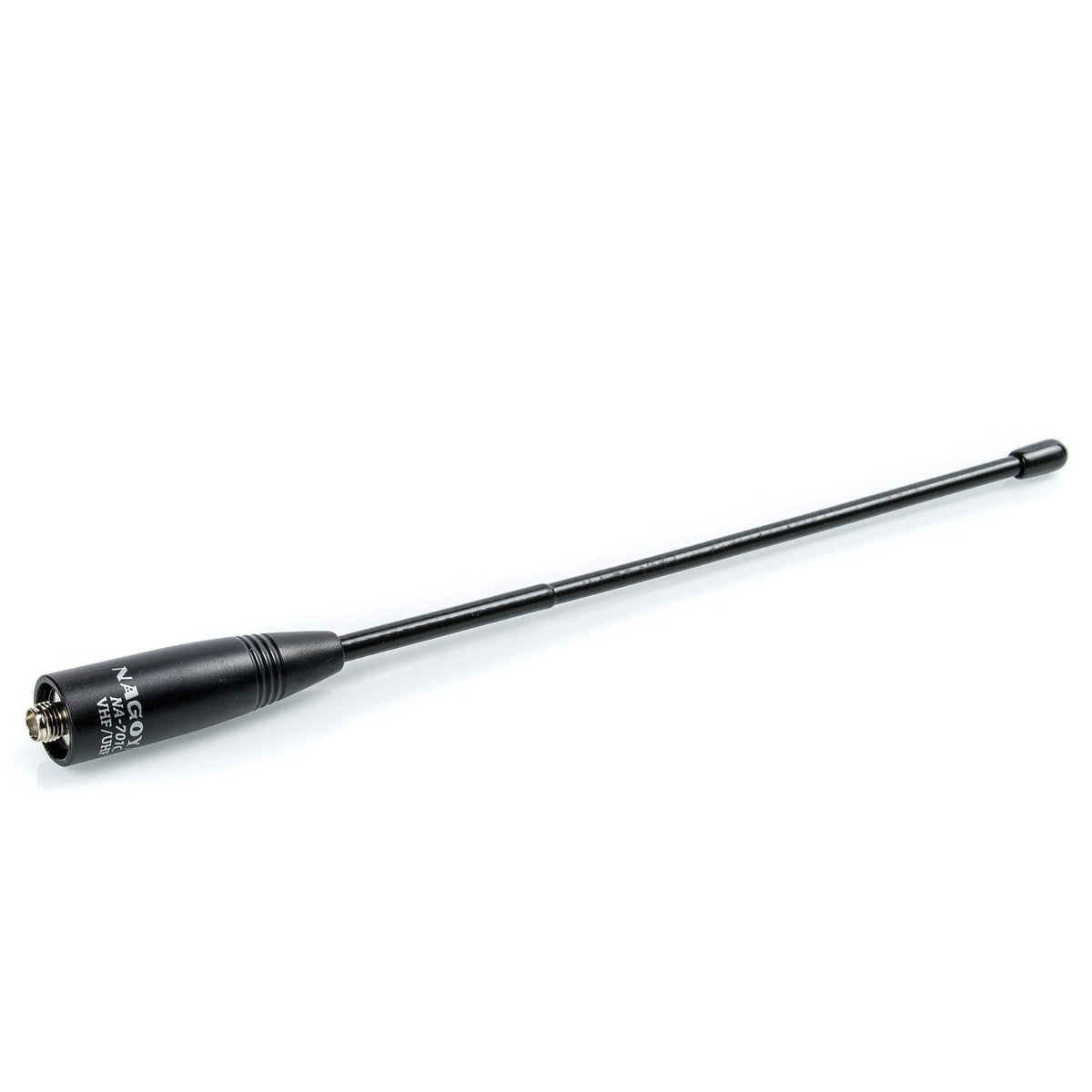

Nagoya NA-701C Antenna

The First Nagoya Antenna for Commercial, GMRS and MURS Users

This is the Original Nagoya NA-701C Dual Band High Gain Antenna. Tuned to the higher frequencies commonly used by commercial and government users.

Note: Beware of counterfeit copies, noted by their improper Nagoya design, an alternate 'brand name', and cheap build quality. Improper and cheaply manufactured antennas will cause high SWR and damage your radio.

This antenna is almost 8 inches long. This is a soft flexible antenna able to withstand more 'roughness' than a stock radio antenna, all while boosting the signal of your radio significantly on the higher frequency range of commercial users.

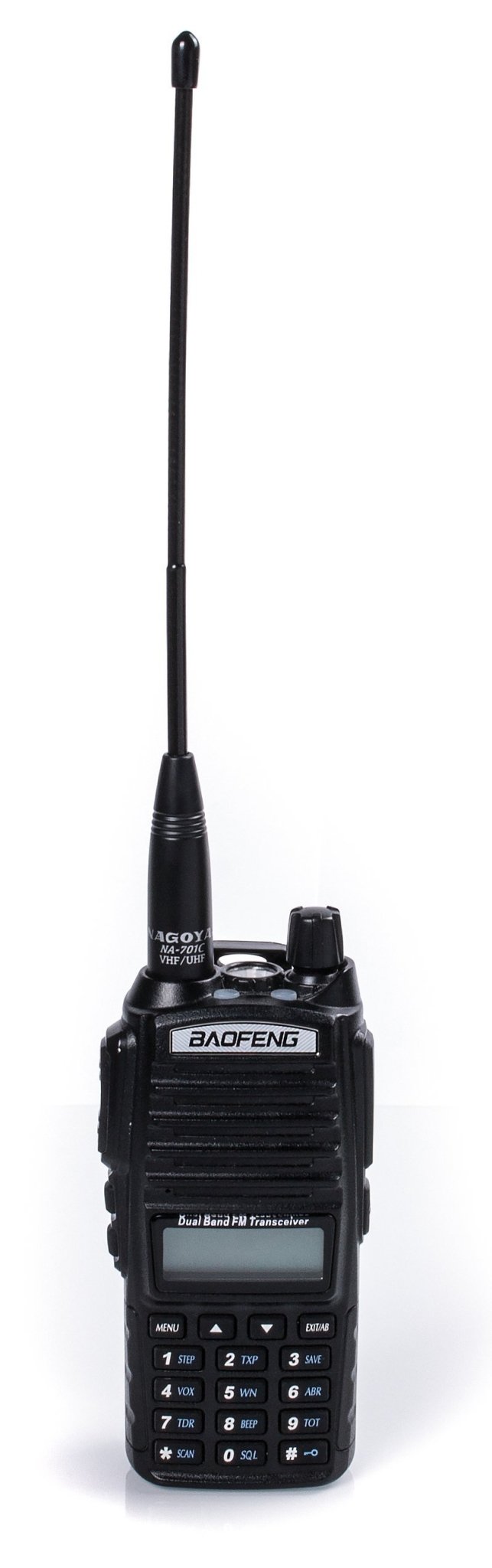

BaoFeng: UV-82, UV-5R (All models), BF-F8HP, BF-F8+, and all other BaoFeng Models; Compatible With all models of BaoFeng.

BTECH: GMRS-V1 (Nagoya NA-701C recommended antenna), MURS-V1 (Nagoya NA-701C recommended antenna), UV-5X3 (Nagoya NA-320A recommended tri-band antenna).

Kenwood:TK-240, TK-250, TK-255, TK-260, TK-260G, TK-270, TK-270G, TK-272G, TK-278, TK-278G, TK-340, TK-349, TK-350, TK-353, TK-360, TK-360G and more.

And any other radio that uses the SMA-Female Connection.

Specifications

• Frequency Range: 136-174MHz, 400-520MHz.
• Optimal Frequency Range: 150-165MHz, 450-470MHz
• Wave: 1/4λ (155MHz) - 1/4λ (455MHz)
• Gain: 2.15dBi
• Max power: 10 Watts
• VSWR: Less 1.5:1
• Impedance: 50 OHM
• Connector: SMA-F
• Length: 8 inches
• Impedance: 50 OHM
• RoHS Compliant
